I’ve built a few compact hunting stands over the years, and the 4×4 platform at 10 feet tall remains my sweet spot for mobility, concealment, and cost. Whether you’re setting up near a food plot, along a travel corridor, or in thick timber, this size hits the balance between stability and stealth. In this post, I’ll walk you through how I plan and build a 4×4 hunting platform, what materials I trust, and the safety and concealment upgrades that make it comfortable for long sits.

Snippet: If you want a stable, budget-friendly, 10-foot-high 4×4 stand, here’s how I design it, build it safely, and dial it in for the season.

Transition: Now that you know what I’m aiming for—compact, sturdy, and safe—let’s break down the key decisions that make a 4x4x10 hunting stand reliable in the field.

Table of Contents

1. What Are the Ideal Dimensions and Specs for a 4x4x10 Hunting Stand?
2. Which Materials and Fasteners Should I Use for Strength and Longevity?
3. How Do I Build a Safe, Stable Base and Ladder at 10 Feet?
4. What Weatherproofing and Comfort Add-Ons Are Worth It?
5. Are There Legal, Ethical, and Safety Rules I Should Follow?

What Are the Ideal Dimensions and Specs for a 4x4x10 Hunting Stand?

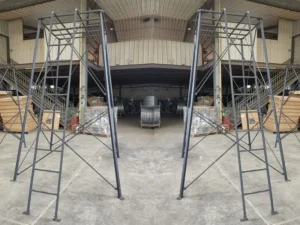

I like to start with a true 48×48-inch platform because it’s tight enough to hide but big enough for a chair and gear. At 10 feet to the platform, you get a good sightline without fighting wind sway or long climbs.

Snippet: Here’s how I spec out the footprint, platform, and bracing so the stand feels solid and safe.

Dive Deeper:

• Platform size: 48×48 inches (inside dimension). I frame it with 2×6 joists—outer box using treated 2x6s and two internal 2×6 joists 16 inches on center. Deck with 3/4-inch exterior-grade plywood or 5/4 deck boards for drainage. I add a 1-inch overhang for water shedding if using plywood.
• Height: 10 feet from grade to deck top. Depending on slope, I measure from the downhill leg and cut legs to match so the deck is level. A simple builder’s level or laser saves time.
• Legs: Four 4×4 pressure-treated posts rated for ground contact. For improved rigidity, I prefer 4×6 posts on the two downhill corners if the site is windy or uneven.
• Bracing: X-brace each side with 2×4 or 2×6 treated lumber. Full-length, opposing 45-degree braces dramatically reduce sway. I also add knee braces under each corner from post to platform frame.
• Guardrails: 36- to 42-inch rails with 2×4 top rails, mid-rails, and 2×2 or 1×4 balusters set ≤4 inches apart. If bowhunting, I leave one shooting gap with a removable panel.
• Access: A fixed ladder at 70–75 degrees with handrails, or a stair-style stringer if you want safer climbs with bulky clothing. I like a 16–18-inch ladder width and 12-inch rung spacing.
• Footprint: On soft soils, I use 16×16-inch paver pads or buried concrete footings with post bases to prevent sinking. On rocky sites, ground anchors and blocking work well.
• Roof (optional): A lightweight shed roof (2×2 or 2×3 rafters, 1/2-inch sheathing, and metal panel) keeps you dry without adding too much sail area.

Claim: A 48×48 platform with full X-bracing on all sides feels rock-solid at 10 feet while staying compact and stealthy.

Which Materials and Fasteners Should I Use for Strength and Longevity?

Overbuilding pays off in quiet sits and fewer repairs. I always choose treated lumber and corrosion-resistant fasteners designed for outdoor structural loads.

Snippet: These material choices keep your stand sturdy through storms and seasons.

Dive Deeper:

• Lumber: Use pressure-treated Southern Yellow Pine or similar, rated for ground contact where applicable. 2×6 for the platform frame, 5/4 deck boards or 3/4 T&G plywood for decking, and 4×4 or 4×6 posts for legs.
• Hardware: Exterior-rated structural screws (like 5/16-inch structural lags) and hot-dip galvanized or stainless hardware. Avoid electroplated zinc with treated lumber—it corrodes faster.
• Connectors: Joist hangers, post bases, corner brackets, and hurricane ties add redundancy. I seat joists with hangers and use corner L-brackets at each post-platform connection.
• Adhesives: Exterior wood construction adhesive under decking reduces squeaks. Pre-drill near board ends to prevent splits.
• Corrosion control: For coastal or high-moisture areas, stainless fasteners pay off. Otherwise, hot-dip galvanized is my default.
• Noise control: Rubber isolators or a bead of caulk between metal roof panels and purlins tame vibration. Felt underlayment also helps.
• Weight vs. strength: If you’re solo-building, 2×4 bracing is easier to lift, but upgrade to 2×6 on windward sides. Keep the roof light to minimize sway.

For span and fastener guidance, the American Wood Council’s span tables are a helpful reference for decking and joists[^1]. Structural screw manufacturers also provide load tables you can consult for specific connections[^2].

Claim: Treated lumber with galvanized structural connectors and screws will outlast bargain materials and stay quiet and safe.

How Do I Build a Safe, Stable Base and Ladder at 10 Feet?

A solid base and safe access are non-negotiable. I’d rather spend an extra hour setting posts and bracing than fight wobble for years.

Snippet: Set your legs right, lock in the bracing, and build a ladder you trust in the dark.

Dive Deeper:

• Site prep: Clear brush, level four bearing points, and check drainage. Avoid low spots that hold water.
• Footings: Option A: Dig 12–18-inch-diameter holes 24–36 inches deep (deeper in frost zones), pour concrete, and mount adjustable post bases. Option B: Use ground spikes/anchors where concrete isn’t feasible and add diagonal guy anchors on windward sides.
• Plumb and square: Clamp the platform frame to two posts on sawhorses or temporary supports, then raise and attach the remaining posts. Check square with the 3-4-5 rule or diagonals. Plumb each post before locking with braces.
• Bracing: Install long 45-degree X-braces on all four sides. Add 2×4 knee braces from posts to the platform corners.
• Ladder: Build from 2×4 side rails and 2×3 or 2×4 rungs at 12-inch spacing. Secure the ladder to the platform with lag screws and add a standoff at the base to hit a 70–75-degree angle. Include handrails or a grab bar at the top.
• Anchoring: Use earth auger anchors with cable or strap ties if wind exposure is high. On slopes, step your footings and keep the downhill side heavily braced.
• Final checks: Bounce test, sway check, and rung grip test with gloves. Add friction tape to rungs and non-slip deck strips.

For ladder safety, I follow ladder angle and rung-spacing guidance similar to OSHA’s fixed ladder recommendations[^3]. Even if this is a private build, those dimensions are proven safe.

Claim: With proper footings, full X-bracing, and a 70–75-degree ladder, a 10-foot stand climbs easy and feels secure.

What Weatherproofing and Comfort Add-Ons Are Worth It?

Little upgrades make big differences during an all-day sit. I prioritize quiet, dry, and scent-smart features.

Snippet: Seal the wood, soften the noise, and add comfort where it counts.

Dive Deeper:

• Sealing: Brush on an exterior wood sealer or semi-transparent stain after the first season’s dry-out. Ends and cuts need extra attention. Re-coat every 2–3 years.
• Roofing: A single-slope metal roof shed-style is light and durable. Add foam closure strips and butyl tape to cut rattles and leaks.
• Siding/wrap: For concealment, I’ve used burlap, camo netting, or marine vinyl. If you enclose walls, use 1/4–1/2-inch plywood with cut windows and hinged shooting ports.
• Flooring: Rubber stall mats or outdoor carpet reduce noise and fatigue. Leave gaps for drainage if you use deck boards.
• Insulation: For cold hunts, rigid foam panels with fabric covering quiet the inside and hold heat, especially with an enclosed roof.
• Comfort: A quiet swivel chair, a small shelf for rangefinder/binocs, and gear hooks keep movement minimal. Install a safety-rated bow/gun hanger, not a random screw.
• Scent and airflow: Add adjustable vents up high. A dark matte interior with minimal openings controls light flash and movement.
• Maintenance: Tighten all connections at preseason. Replace any corroded fasteners and re-check anchors after storms.

Need ideas for low-maintenance exterior finishes? Consumer-oriented tests of exterior wood stains and sealers can help you pick durable options[^4].

Claim: Thoughtful weatherproofing and quiet comfort upgrades make your 10-foot stand feel invisible and enjoyable for long sits.

Are There Legal, Ethical, and Safety Rules I Should Follow?

I always double-check local regulations and landowner rules before I build or hunt. It keeps me legal, safe, and welcome.

Snippet: Know the rules, use a harness, and respect the land.

Dive Deeper:

• Regulations: Some states limit permanent structures, require tagging stands, or set distance rules from property lines and roads. Public land may prohibit permanent posts or roofed blinds.
• Permissions: Written permission from private landowners sets expectations on location, duration, removal, and liability.
• Safety gear: Always wear a full-body safety harness and use a lineman’s belt while building and a lifeline with a prusik or mechanical ascender while climbing.
• Fire safety: If you use heaters in enclosed stands, install a carbon monoxide detector and keep ventilation open. Never leave heaters unattended.
• Wildlife ethics: Position your stand for clean shots inside your effective range. Avoid blocking trails or damaging live trees without permission.
• Leave no trace: Use existing access paths when possible. Pack out trash and avoid open soil erosion around the base with mulch or gravel.
• Off-season: Take down fabric wraps, inspect for rot, and close entry points to discourage nesting.

For up-to-date, state-specific stand rules, check your state wildlife agency’s regulations digest[^5]. Tree stand safety groups also publish harness and lifeline best practices[^6].

Claim: Following local rules and using a harness with a lifeline keeps you safe, legal, and respectful of the land.

Conclusion

A 4×4 platform at 10 feet is a smart, compact hunting stand that balances concealment, stability, and cost. With treated lumber, full cross-bracing, solid footings, and a safe ladder, you’ll get a reliable perch season after season. If you’re ready to build, save this plan, gather your materials list, and start with the base and bracing this weekend—then add the comfort upgrades before opening day.

Want a printable cut list and hardware checklist for this 4x4x10 stand? Drop a comment or contact me—I’ll send you my field-tested build sheet.

Footnotes

[^1]: American Wood Council Span Tables – Verify joist/deck spans for safe loading. ↩︎
[^2]: Simpson Strong-Tie Fastener Load Tables – Check structural screw capacities for key connections. ↩︎
[^3]: OSHA Fixed Ladder Guidelines – Reference angles and rung spacing for safer ladders. ↩︎
[^4]: Consumer Reports: Deck Stains Buying Guide – Compare weatherproofing products that last outdoors. ↩︎
[^5]: US State Wildlife Agencies Directory – Find your state’s current hunting and stand rules. ↩︎
[^6]: Tree Stand Safety Awareness Foundation – Best practices for harnesses, lifelines, and safe climbs. ↩︎
